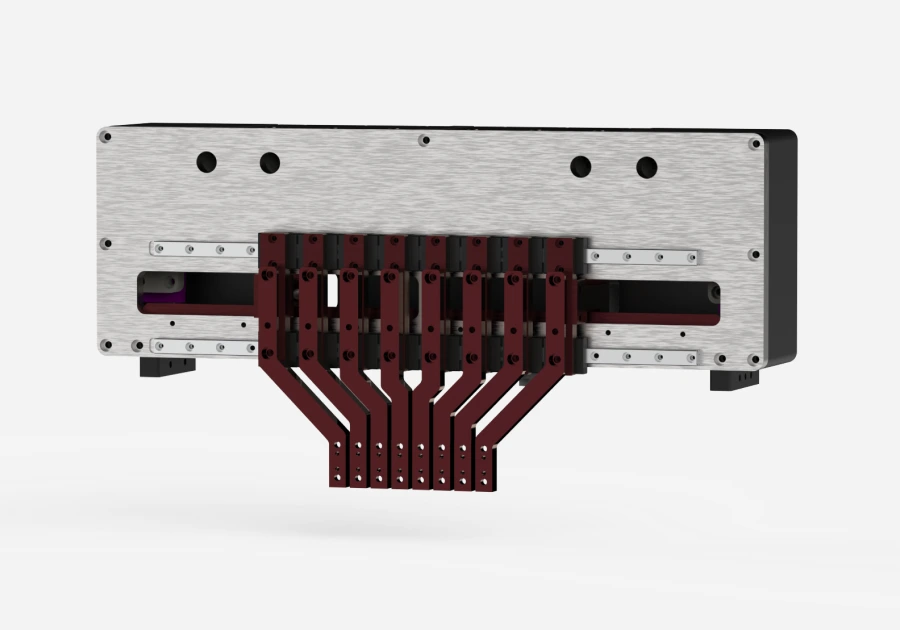

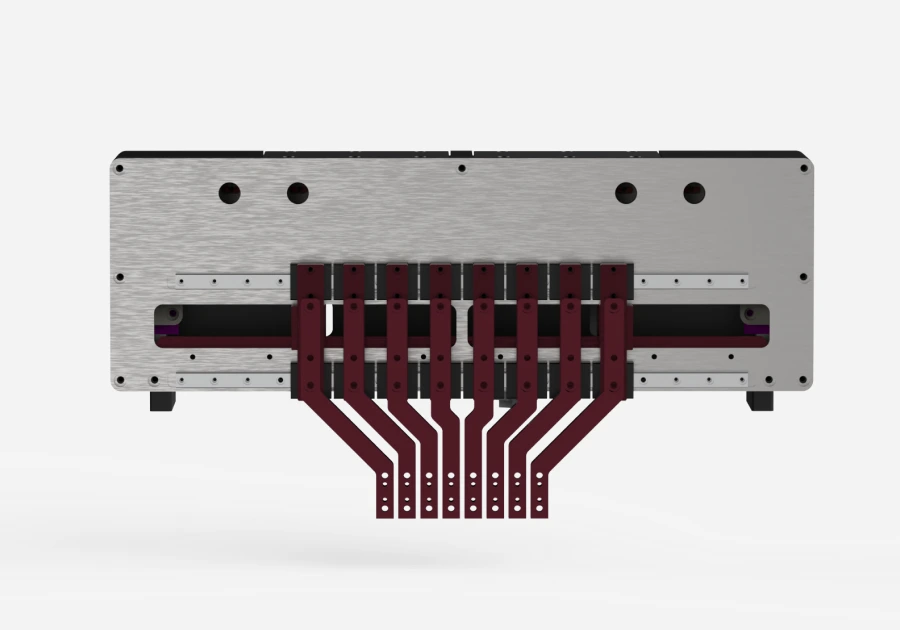

PITCH CHANGE HEAD
Features
A variable head that enables X-axis variation through link mechanisms.
Motor-driven operation allows free equal spacing adjustment within pitch conversion specifications.
Based on PSMP’s rich design expertise, the structure is simplified to provide a cost-effective product with excellent versatility.
Product Inquiry
Technical Data
| Item | Specification |
|---|---|
| Model | LPCH |

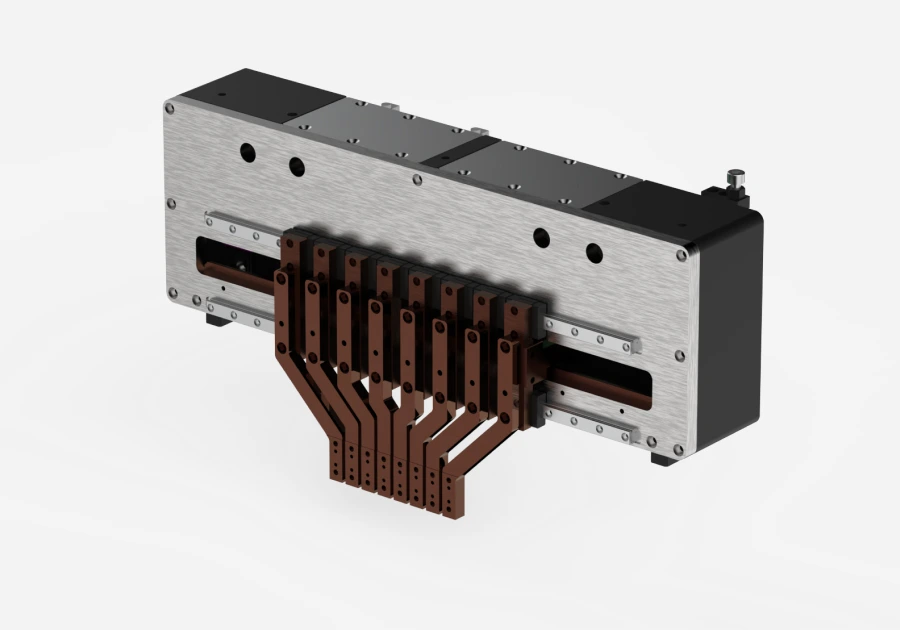

| Type | Link |
| Drive Method | Servo Motor Drive |
| Position Accuracy (mm) | ±0.05 |
| Repeatability (mm)² | ±0.07 |
| Minimum Pitch (mm) | 6 |
| Maximum Pitch (mm) | 30 |
| Minimum PARA Count (EA) | 4 |
| Maximum PARA Count (EA) | 14 |
| Sensor | Home, Limit photo sensors standard |
| Maximum Variable Frequency (Cycle / 1min) | 120 |

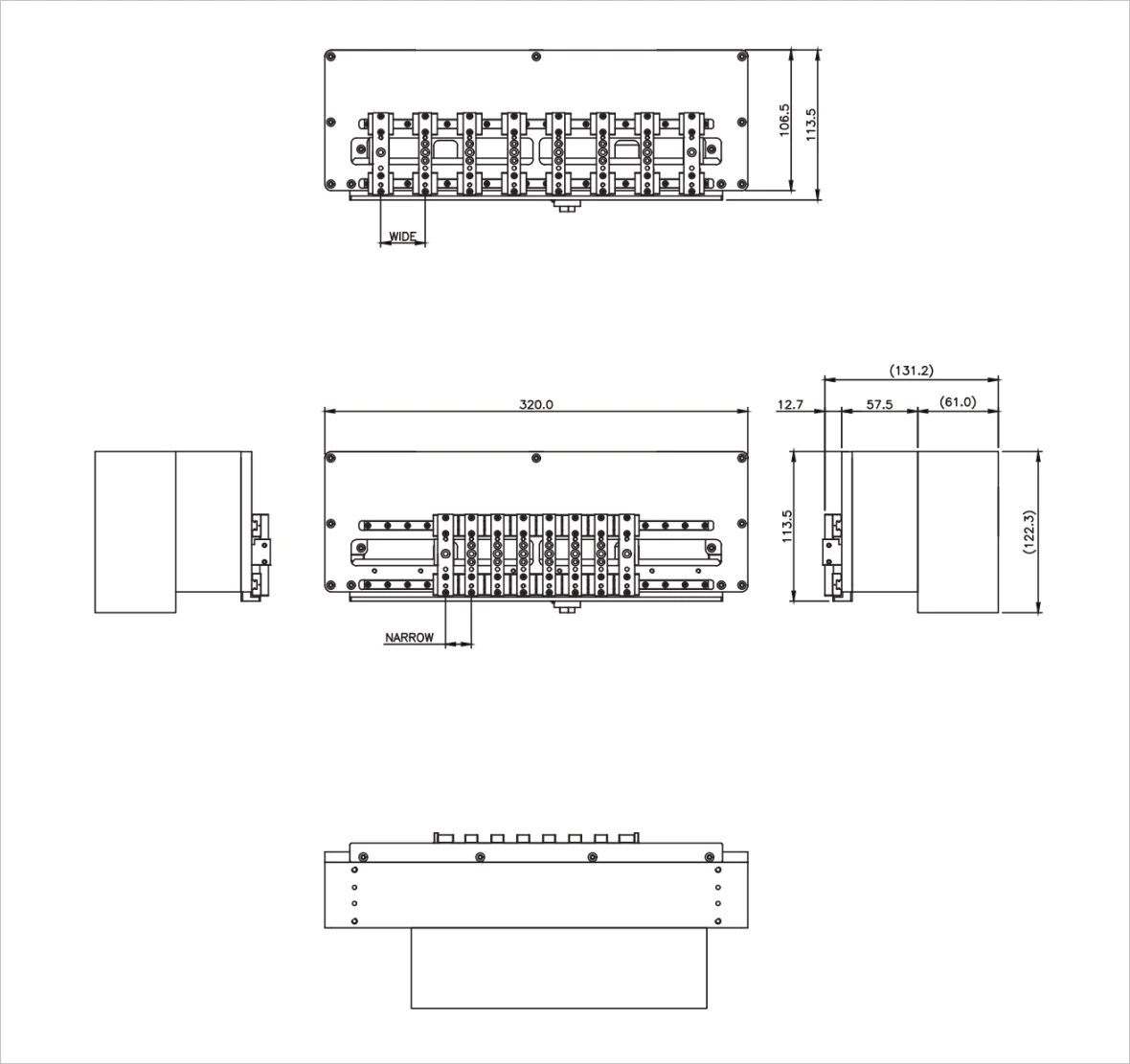

Dimensions
Order Number

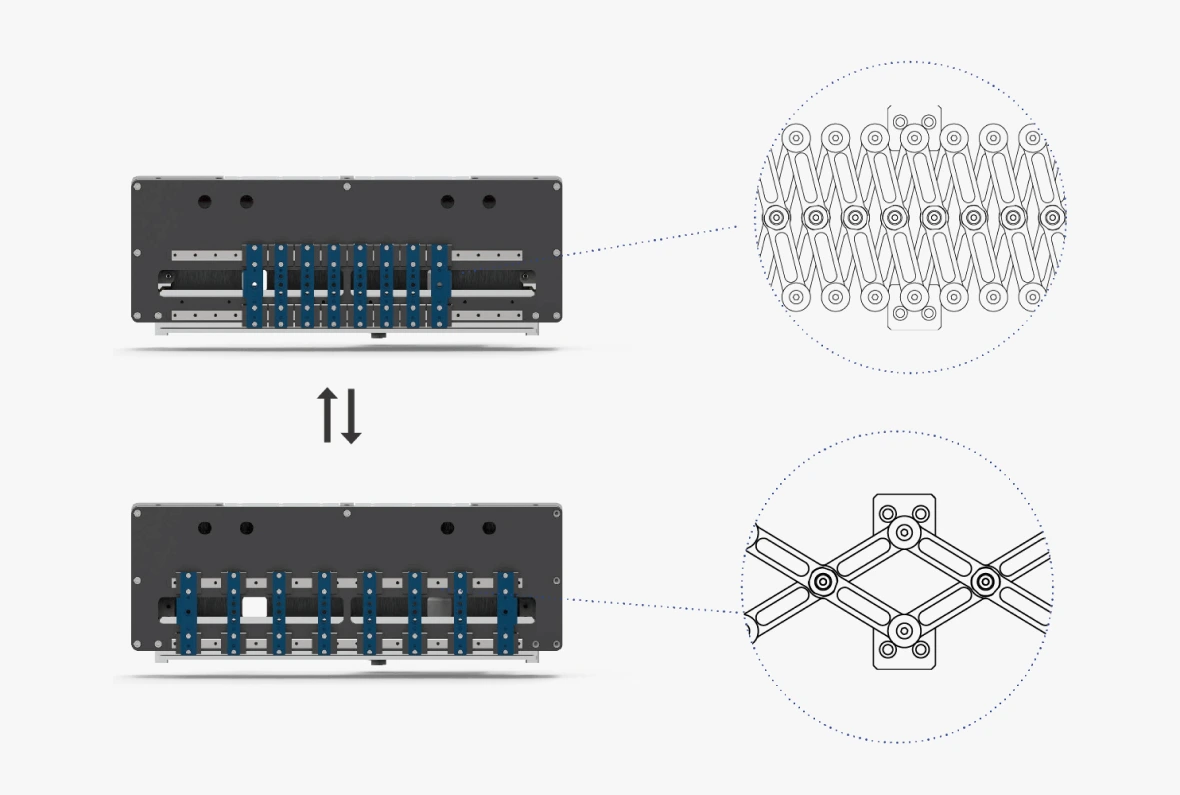

Variable Principle
A variable head that operates through LINK mechanisms.
Download
No files are available for direct download on this page.
