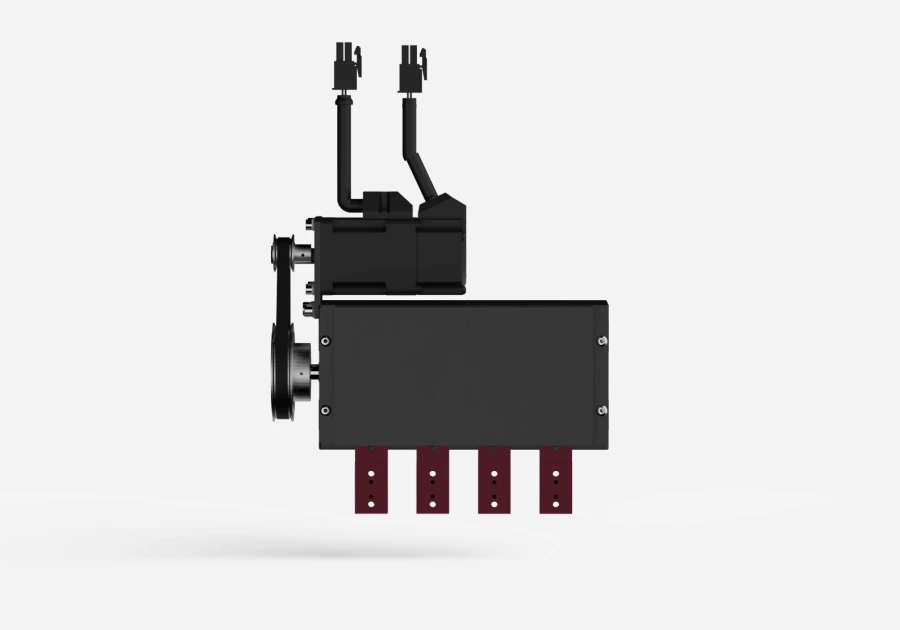

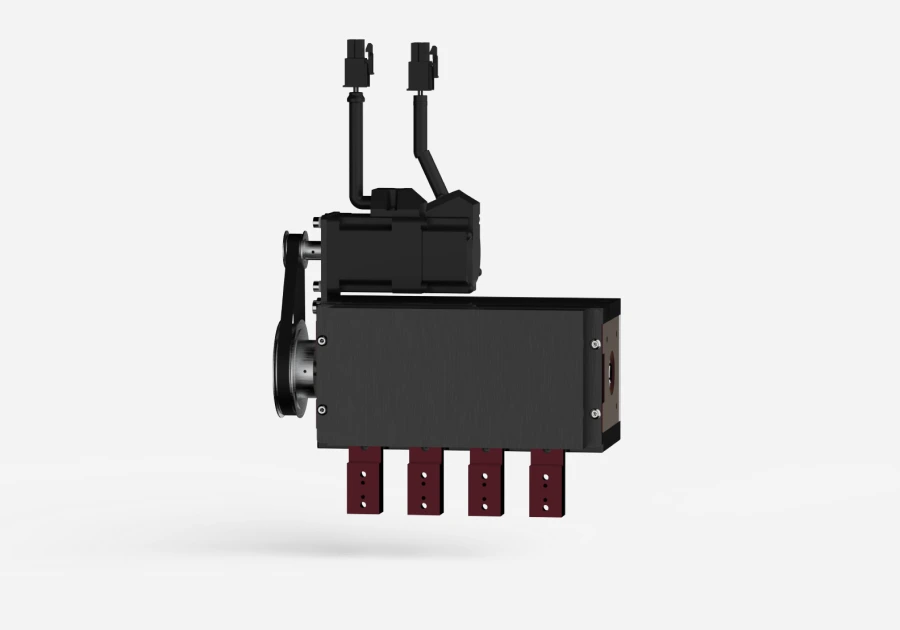

PITCH CHANGE HEAD
Features
A barrel cam type variable head with profile grooves machined on the barrel (cylindrical) surface.
Motor-driven operation allows free equal spacing adjustment within pitch conversion specifications.
Can move smoothly without sudden impacts or vibrations.
Product Inquiry
Technical Data
| Item | Specification |
|---|---|
| Model | BCPCH |
| Type | Barrel Cam |
| Drive Method | Servo Motor Drive |
| Position Accuracy (mm) | ±0.05 |
| Repeatability (mm)² | ±0.05 |
| Minimum Pitch (mm) | 6 |
| Maximum Pitch (mm) | 30 |
| Minimum PARA Count (EA) | 4 |
| Maximum PARA Count (EA) | 14 |
| Sensor | Home, Limit photo sensors standard |
| Maximum Variable Frequency (Cycle / 1min) | 120 |

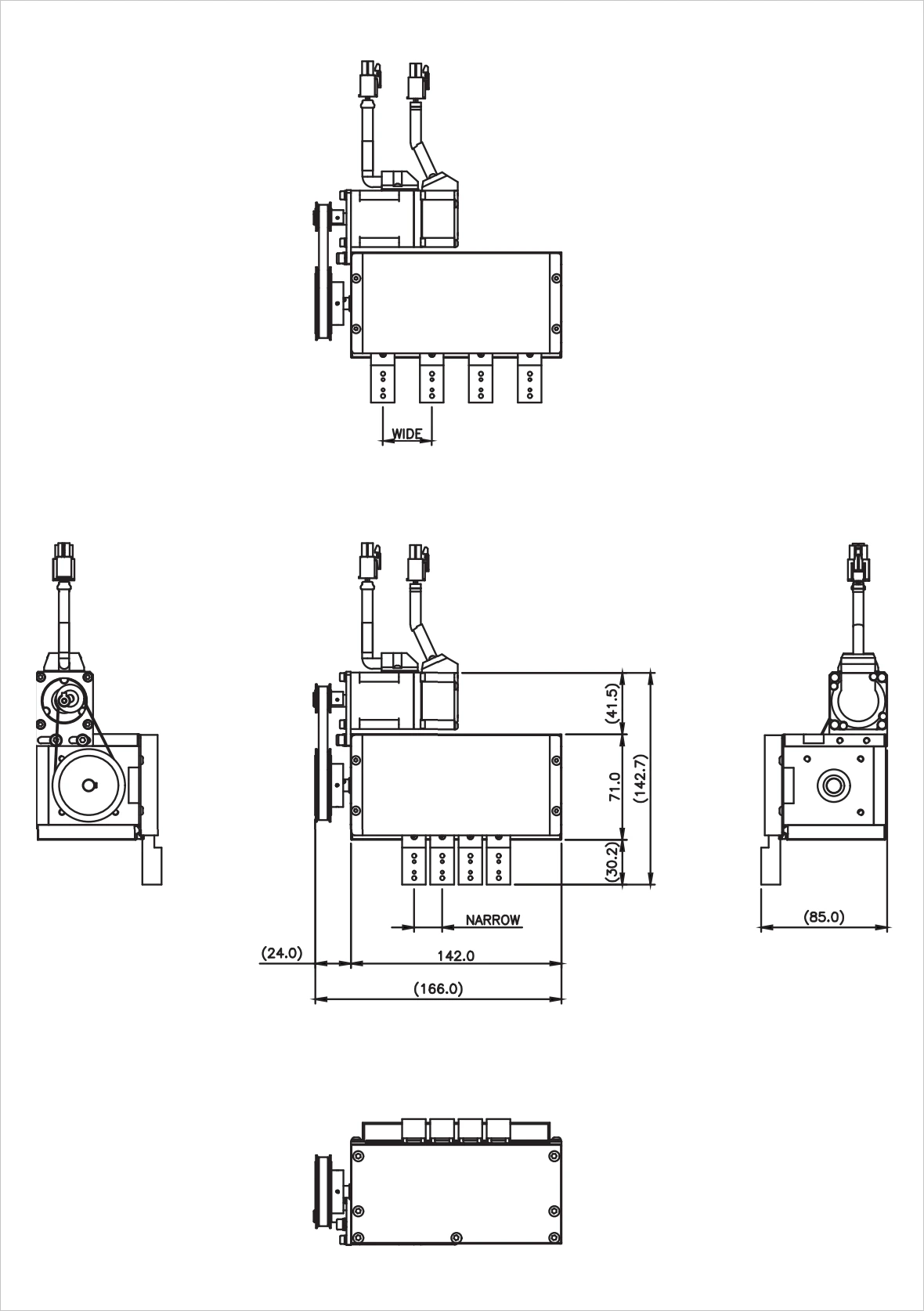

Dimensions
Order Number

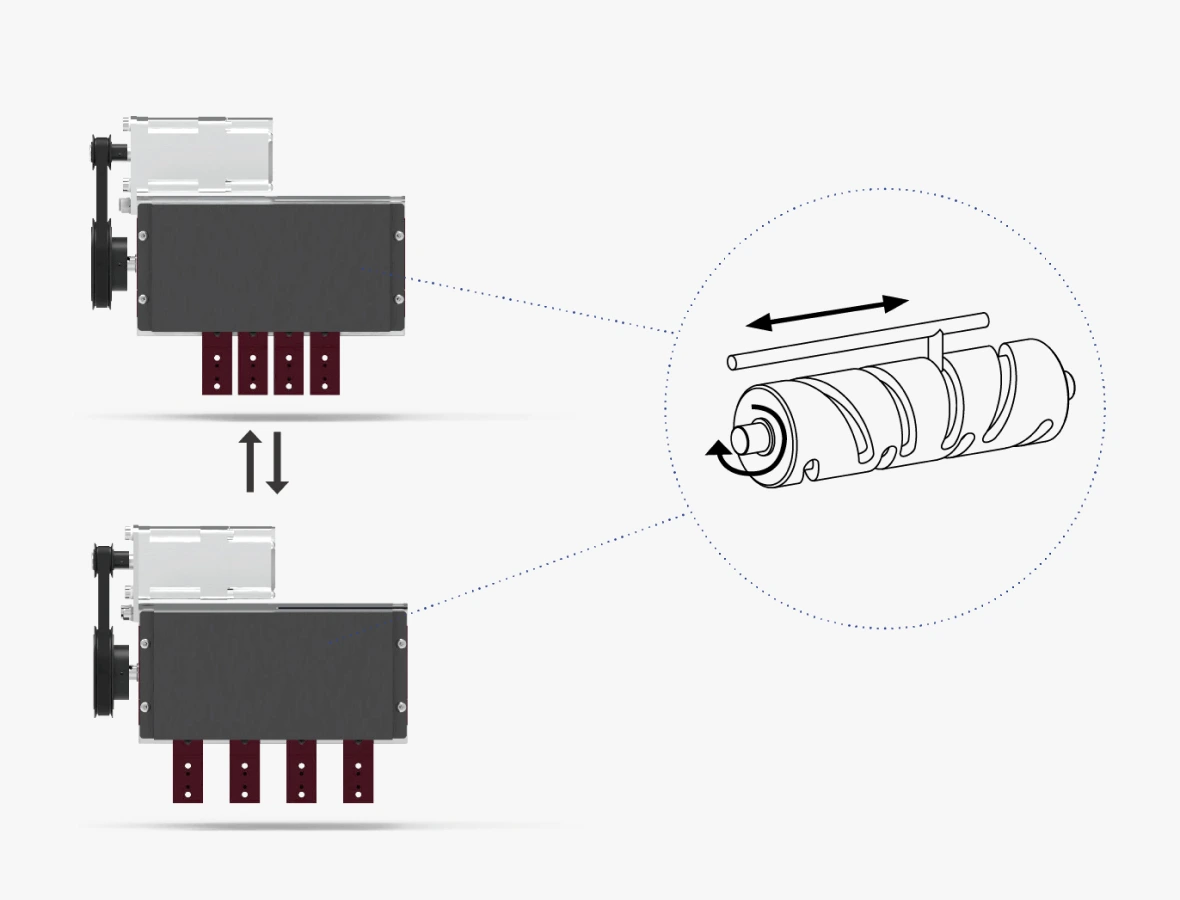

Variable Principle
The barrel cam structure (Barrel Cylinder) is a three-dimensional cam structure where a follower moves along a precisely machined profile on the cylindrical cam surface, converting pitch to desired intervals as the barrel cam rotates. Compared to plate cam heads, it enables more compact design in the Y-axis direction, making it suitable for use in limited spaces.
